Open-Source E-Paper Frame

A digital frame you can build and modify.

The digital photo frame that looks like a print.

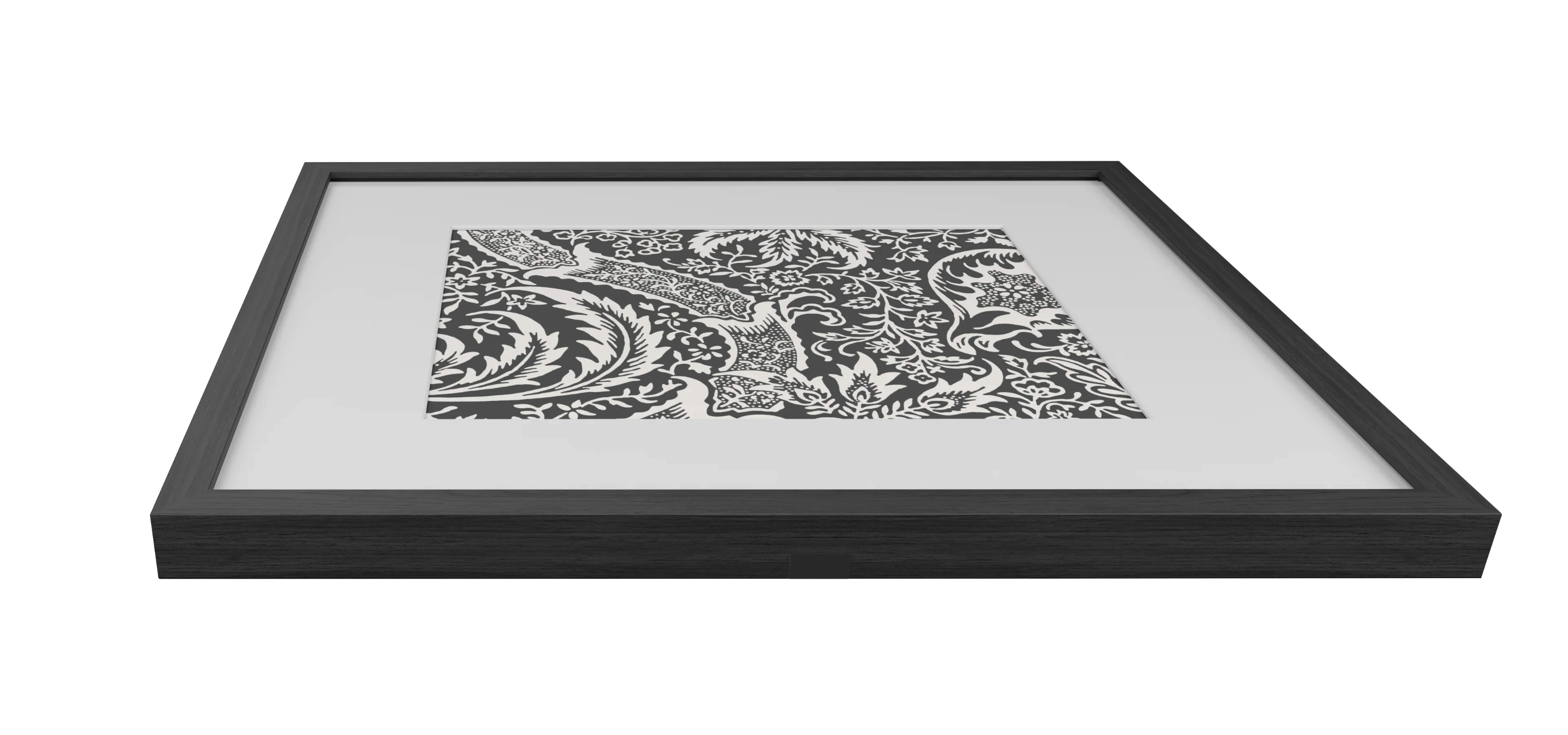

Omniframe side view

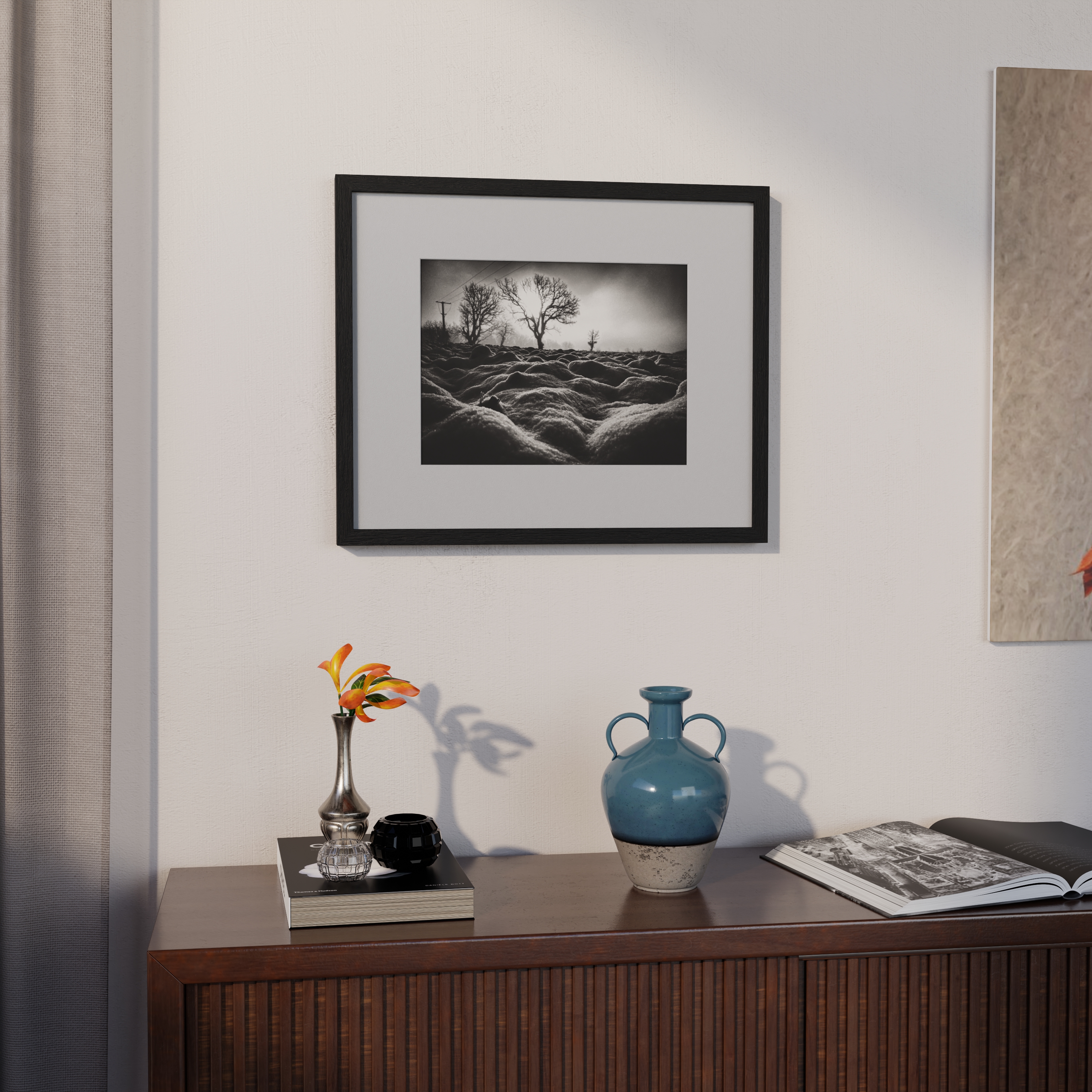

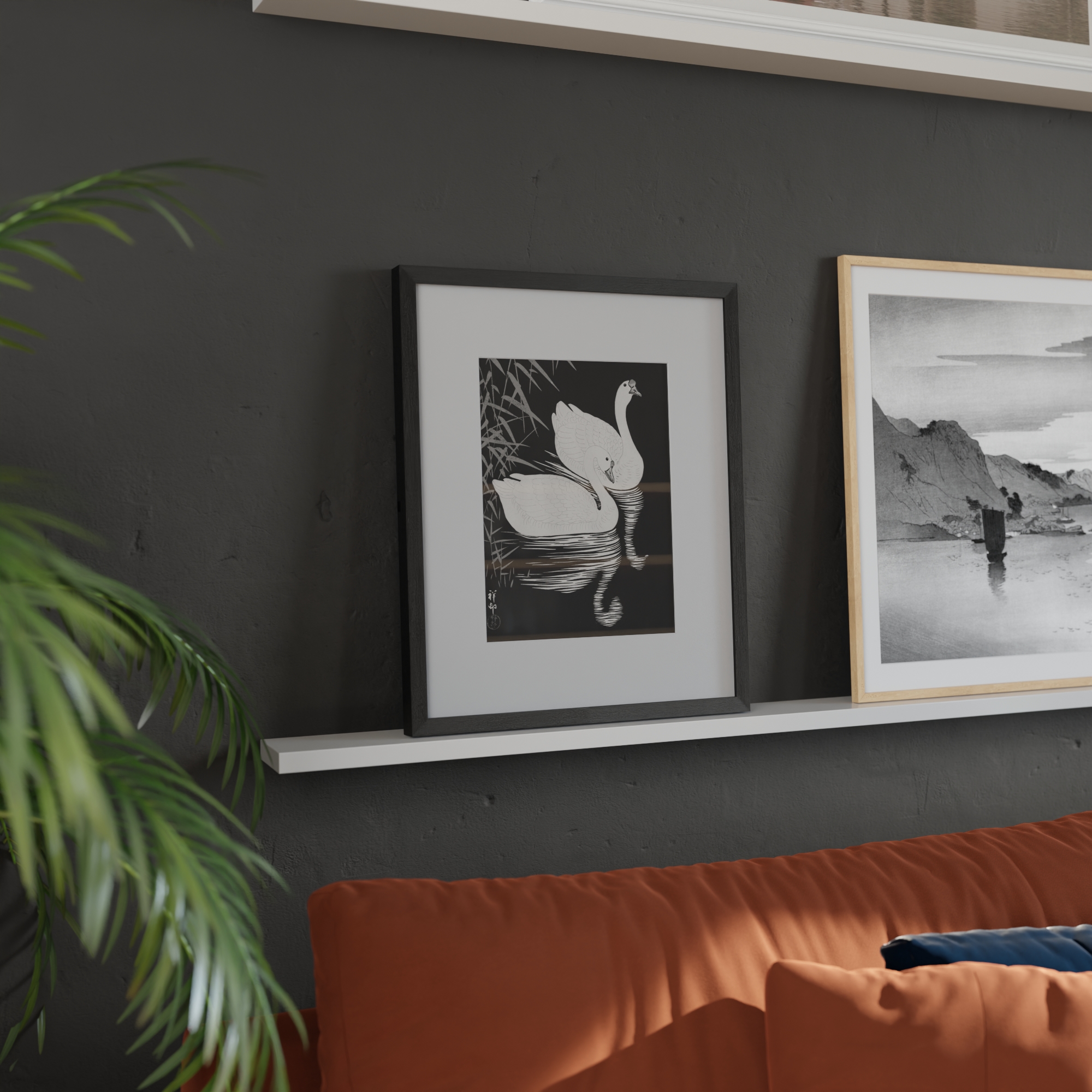

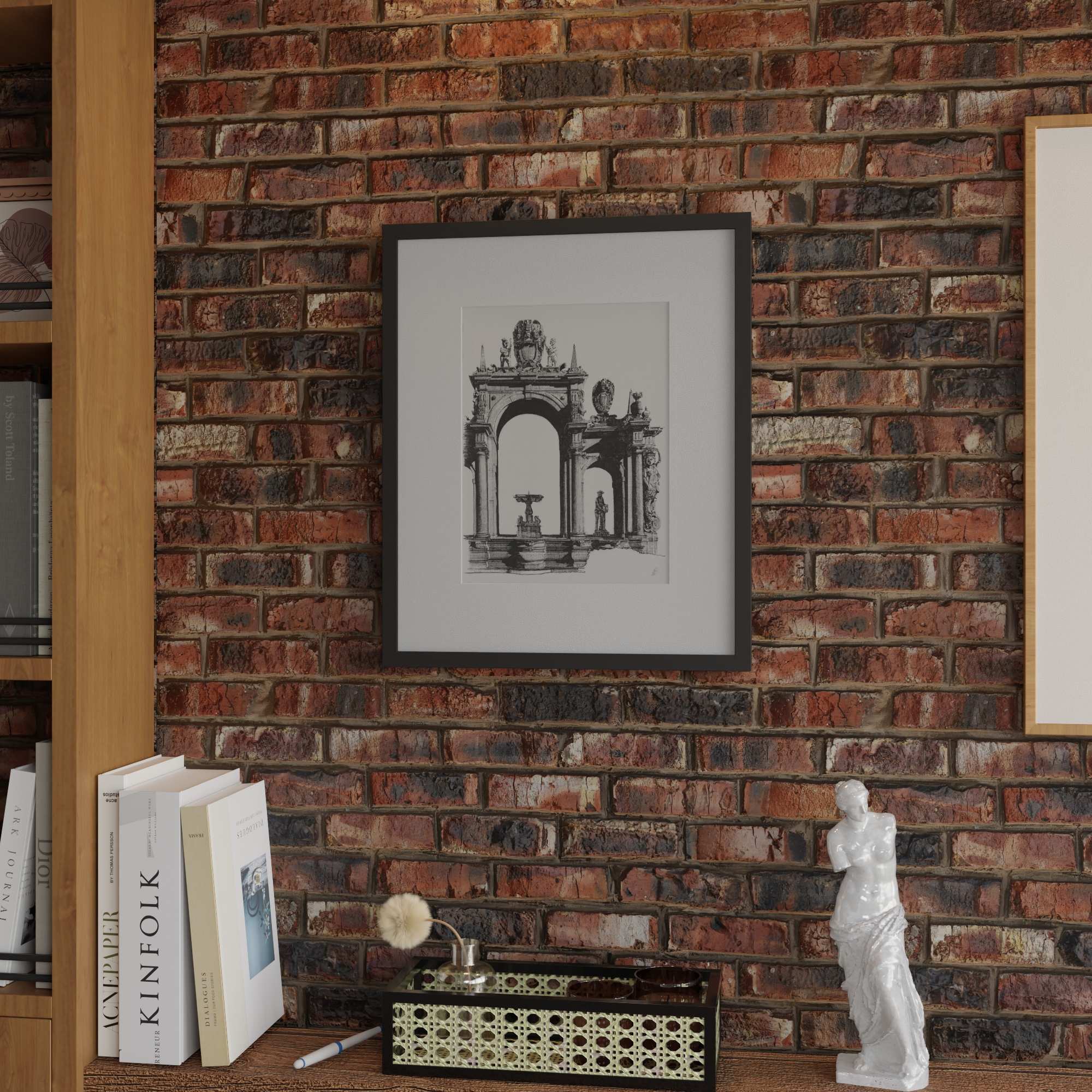

Omniframe in interior setting Omniframe in interior setting Omniframe in interior setting

Timeless & customizable design to fit any space or purpose.

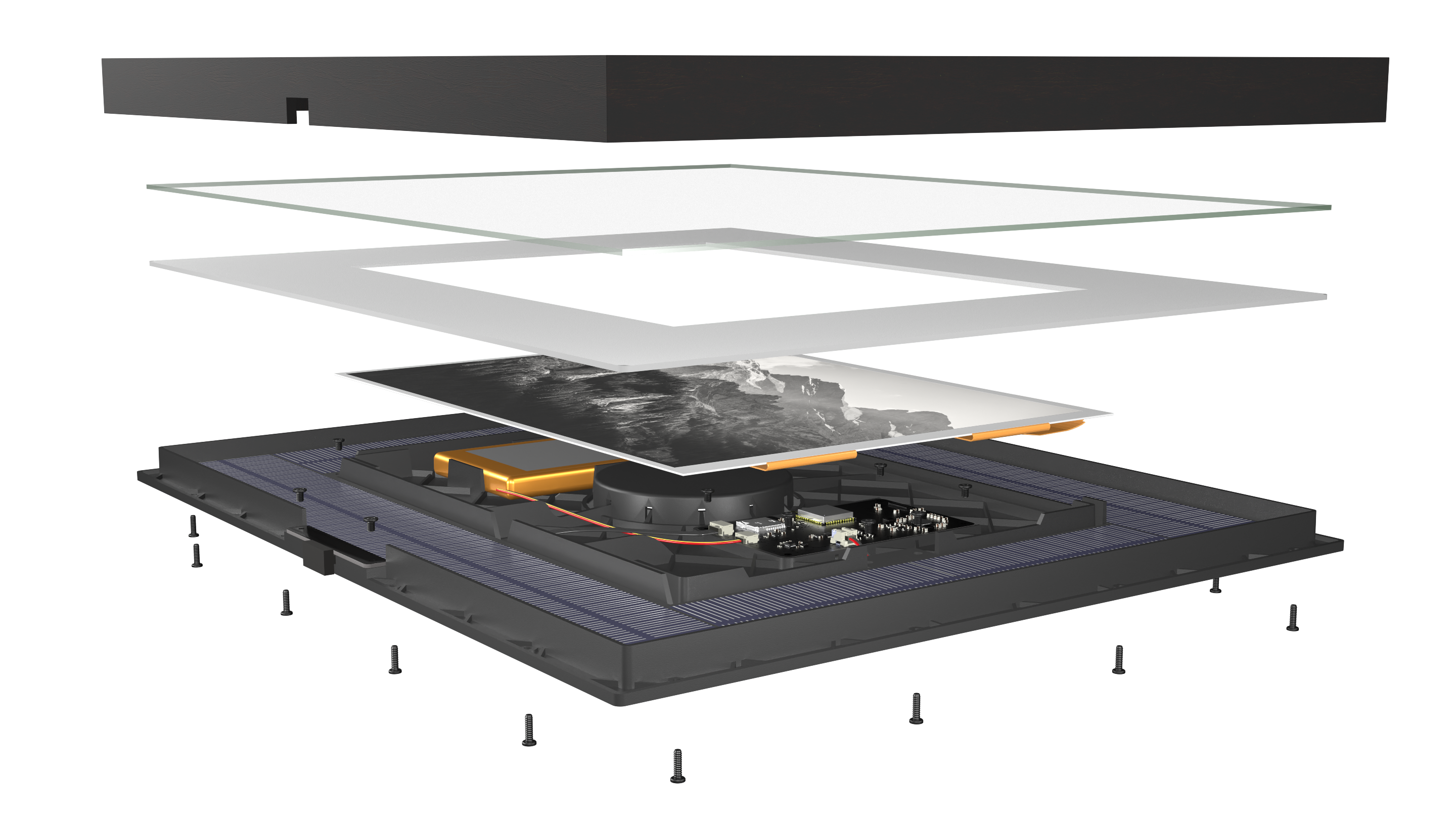

Omniframe exploded view

Integrated Light Harvesting System

The design includes an optional solar cell array behind a 60% translucent window mat for up to infinite battery life.

Specifications

Display

  • Resolution1600 × 1200
  • DPI150
  • Size13.3" (27 × 20 cm)
  • ModelE-Ink Carta 1200

Hardware

  • SoCESP32-S3
  • PSRAM2MB
  • Flash8MB
  • StorageSD Card Slot

I/O

  • ButtonsReset & Sync
  • ConnectorUSB Type-C
  • WiFi802.11 b/g/n
  • Bluetooth5.0 LE

Frame

  • Dimensions43.5 x 35.5 cm
  • MaterialAcacia Wood
  • MountingRotating Wall Mount

Open Source.

Use our designs or customize to your liking
